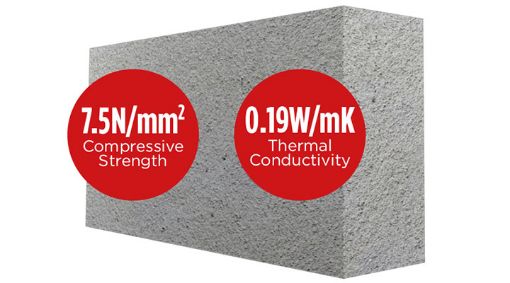

Mannok 100mm B7 Seven Insulation Block (High 7 Equiv)

Manufacturer: Mannok

• Quinnlite 100mm B7 Seven Insulation Block • High 7 thermal conductivity equivalent • Provides excellent insulation for walls and floors • Lightweight and easy to handle • Ideal for reducing heat loss and saving energy costs • Compressive Strength 7.5 N/mm2 • Thermal Conductivity 0.19 W/Mk More product details below

SKU: BB01092

Availability: In stock

£3.31

Qty:

i h

Overview
Contact Us

MANNOK AIRCRETE SEVEN BLOCKS

Mannok Aircrete Seven block combines a very high strength to weight ration with an excellent thermal performance making them ideally suited multi-storey domestic and commercial buildings.

*Mannok Aircrete Seven (previously Quinn Lite Seven)

PERFORMANCE & PROPERTIES

Gross Dry Density (Kg/m3): 760
Mean Compressive Strength (N/mm2): 7.5
Thermal Conductivity (W/mK): 0.19
Dimensional Tolerance in GPLM: D1
Dimensional stability/moisture movement (mm/m): <0.4

Fire Resistance

Mannok thermal blocks provide excellent fire protection in both load bearing and non load bearing applications. They are classed as non combustible and have a Class 0 resistance to surface spread of flame and category A1 in accordance with BS EN 13501-1.

Acoustics

Mannok Aircrete Seven Blocks have a density of 760kg/m3 and so are suitable for use in party wall construction. Guidance on party wall construction can be found in Robust Details or alternatively contact the Mannok Technical Department.
